Mori Seiki MV40M 5 Axis Vertical Machining Center

$39,500.00

Product code: 10315

       Mori Seiki Model MV40M 5 Axis Vertical Machining Center

  Table Size:                             35.4" x 17.7"
  X-Axis Table Travel:                    22.0"
  Y-Axis Saddle Travel:                   16.1"
  Z-Axis Spindle Head Travel:             18.1"
  Maximum Distance Spindle To Table:      5.9" - 24"
  Rapid Traverse Rate:                  787 IPM X,Y,Z
  Spindle Taper:                          CAT-40
  Spindle Speeds:                         8,000 RPM
  Spindle Drive Motor:                    15 HP
  Automatic Tool Changer:                 30 Positions
  Maximum Tool Diameter:                  3.1"/4.9"
  Maximum Tool Length:                    11.8"
  Maximum Tool Weight:                    15.Lbs.
  Chip To Chip Time:                      5.2 SEC
  Tool Change time:                       1.5 SEC

  Equipped With

  Yasnac I80M CNC Control

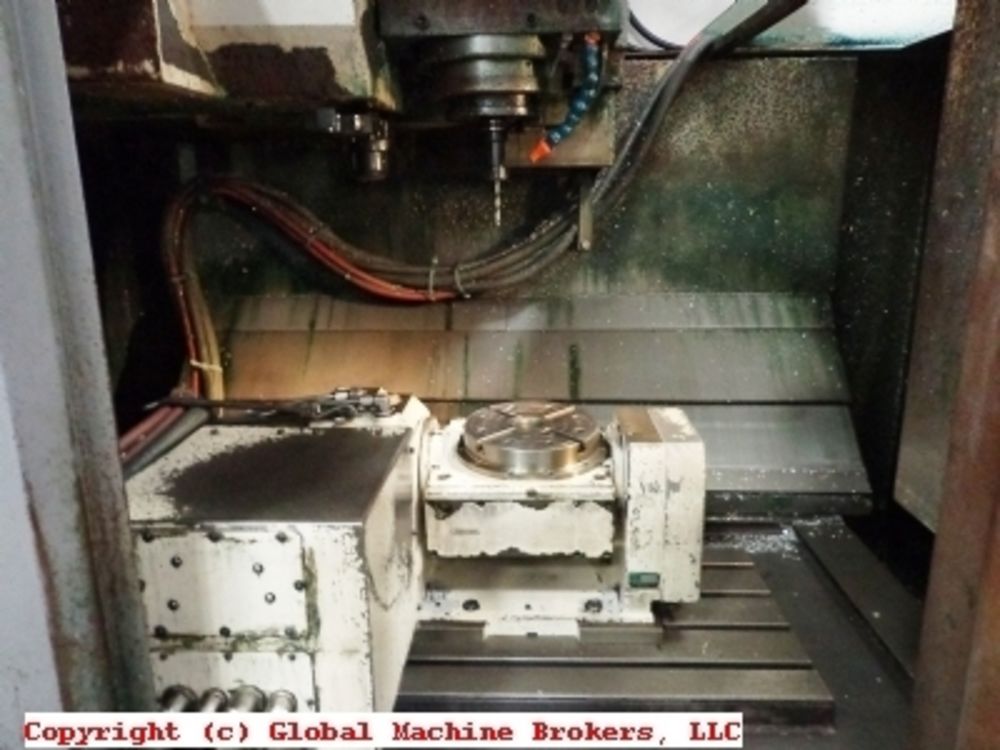

  Tsudakoma Model TRNC-201 5th Axis Trunion Type Rotary Table
  30 Position Side Mount Tool Changer
  (2) Identical Machines Available

  Approximate Dimensions:                 88"(LR) X 88"(FB) X 106"(H)
  Approximate Weight:                     8,580 Lbs.

  Year Mfg. 1995


This item is no longer available.
