Saws

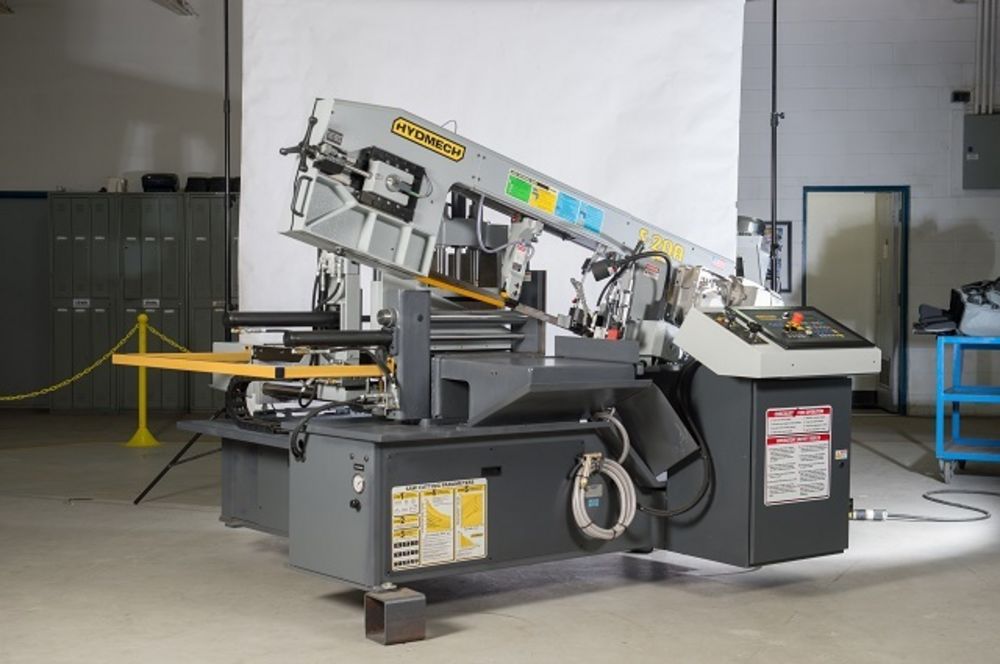

HydMech S-20A 13"H X 18"W Capacity 5Hp 208, 240, 480 Or 575V 3Ph Automatic Band Saw

6020 1 large

$28,500.00

Product code: 15247

HydMech S-20A 13"Hx 18"w Capacity 5Hp 208,240,480 Or 575V 3Ph Automatic Band Saw

Please Note Global Machine Brokers Is Only Authorized To Sell Hyd-Mech And Their Products In The State Of Connecticut, For All Other Interested Parties Please Refer To Hyd-Mech's Website To Locate Your State Distributor

  • Make: HydMech
  • Model: S-20
  • Table Height: 31"
  • Rectangular Capacity At 90°: 13” H x 18” W
  • Rectangular Capacity At 45°: 13” X 10 3/4”
  • Rectangular Capacity At 30°: 13” X 7 3/4”
  • Round Capacity At 90°: 13"
  • Round Capacity At 45°: 12”
  • Round Capacity At 30°: 8 1/2”
  • Blade Dimensions: 1” x 14′ 10”
  • Blade Drive: 5 Hp VFD
  • Blade Speed: 75-350 Sfm
  • Coolant Tank Capacity: 12 Gallon
  • Max Work Load: 5,000 Lbs
  • Machine Weight: 3,800 Lbs
  • Machine Dimensions: 93" X 86" X 52"

Standard Features:

  • Easy Swing, Heavy Duty Cast Iron Saw Head
  • Cast Iron Shuttle Features Automatic Multi-Indexing Up To 27” In A Single Stroke. Powered By Ball Screw And Stepper Motor.
  • 5 HP VFD. True Direct Blade Drive – No Belts/Pulleys
  • On-Demand Hydraulics Save Energy
  • Blade Chamber Separates Material From Cut Part
  • Cast Iron Band Wheels
  • Automatic PLC, Touch Screen Control Programmable Up To 100 Jobs With 20 In Queue
  • Replaceable Blade Brush
  • Robust Steel Base
  • Easy To Read Angle Scale With Angle Locking Mechanism
  • Cast Iron Guide Arms Mounted On Linear Rails Is Adjustable For Proper Spacing.
  • Easy access electrical panel
  • Out Of Stock Switch
  • Mechanical Band Tensioning With Digital Readout
  • Hydraulic Positive Down Feed
  • Replaceable Carbide Guide Inserts
  • Safety Door Interlocks
  • Flood Coolant With Wash Down Hose
  • Laser Light
  • Work Light

Available Options: (At Additional Cost)

  • Full Capacity Hydraulic Overhead Bundling
  • Remote Operator Console
  • Mist Lubrication
  • Variable Vise Pressure
  • Idler Conveyors
  • Powered Conveyors

The S-20A, Automatic Scissor Style Band Saw Features A Swing Head Design And Provides Exceptional Miter Cutting Capability For Light To Medium Duty Applications.

Featuring A 13″H x 18″W Capacity At 90°, 3 HP Motor, And 1″ Blade, The S-20A Is A Versatile, Automatic Scissor Style Band Saw Ideal For Use In Tight Working Spaces.

You will receive an invoice via email or Ebay for the full amount owed, including shipping. Please donot pay until you have received the invoice. Items not paid within 10 days from the end of an auction will be relisted. Payments by check will be held up to 4 days until the check clears.

We can ship by LTL, partial or full, van or flatbed, double drop, or export container.

Freight costs are to be quoted at the time of sale.

All freight costs are to be paid by the buyer prior to pickup.

Please contact a sales representative for a shipping quote.

We ship within 5 business days of cleared payment. Freight shipments may take longer due to palletizing and scheduling. Items lessthan 100 lbs. ship via UPS ground. Freight may be booked with any carrier, but usually goes out on the best available.

Extra shipping charges:
Lift gate truck- Add $128
Residential Delivery- Add $80
If a rigger, a lift gate truck, or a residential delivery is necessary, please notify us prior to quoting shipping.

If buyer chooses to use their own freight, shipping account, and or carrier, they will be responsible for all scheduling, paperwork, claims, and any damages incurred in transit.

Local pickup is always welcome. No handling fees apply on local pickup. Any item not picked up within 30 days from the end of anauction will be charged 10% of item(s) cost per month for storage.

You are bidding on a used item. Please be sure to ask any and all questions prior to bidding. SOLD AS IS/WHERE IS. We will do our best to answer specific questions but please be aware that the equipment may no longer be located within the original facility and historical information and photos may be limited.
