Asahi Seiki TP-65D Transfer Press, 7" Stroke, 14 OP Die Set, Excellent, New 1995 (#14240)

List Price: $229,000.00

On sale: $206,100.00

You'll save: $22,900.00 (10%)

More information

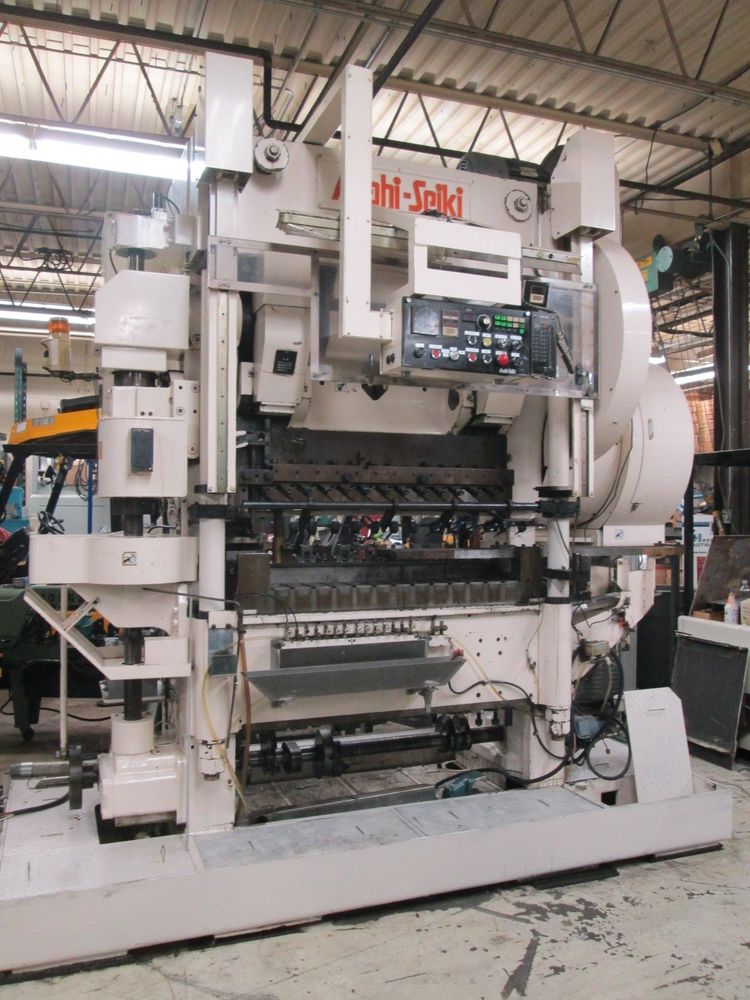

Asahi Seiki TP-65D Transfer Press, 7" Stroke, 14 OP Die Set, Excellent Cond. New 1995

Make: Asahi Seiki

Model: TP-65D

Serial No.: 12038

Date of Mfg: 11/1995

7" Stroke (177.8mm)

Shut Height: 508mm

SPM: 25-100

14 Station Die Set

Die Set, Slide, Transfer Cam Included

Pull Through Zig Zag Oscillating Feeder

15KW, 200-230V, 60Hz Main Motor - Yaskawa

AC Inverter Speed Control

Lube Electric Oil Pump w/ Sensors and Large Reservoir

Ross Duel Solenoid Safety Valve

Allen-Bradley Oil Pressure Sensors

Excellent Mechanical Condition BUT this press has no PLC or Encoder.  It can be replaced with identical updated units or you can replace the controls completely to your own specs.  As such, we have reduced the price of this press.

We have all the designs for the die set tooling.  Die holders, punch blocks, stripper system, cams and rockers.  We can make anything you need for this die set at a fair price and to tight transfer press tolerances.

Rigging and Hauling Not Included in Sale Price

  1. Machine height for rigging into a building: The machine is exactly 10” 2” tall from the bottom to the top of the crown’s highest points.  That is with the motor and flywheel off and the front operator guarding track’s off. The press is 10’4” tall with the front operator panel guarding on.
  2. The press is 11’3” tall with the motor and flywheel guard in place.
  3. Base Measures In At 124" Long X 60" Deep
