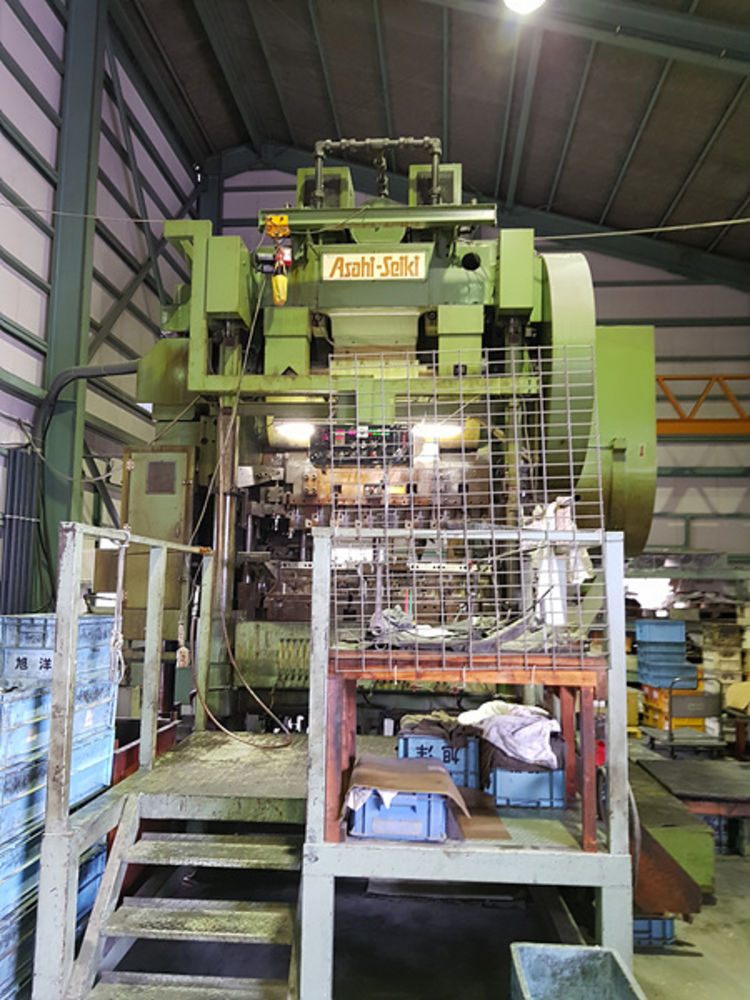

Asahi Seiki TP-150 Transfer Press New 1993 6" Stroke 9 Op Die Set, 150 Tons (#17908)
Asahi Seiki TP-150 (#11936 / 1993. 11)
Capacity : 150ton
Stroke : 152mm
Shut height : 765mm
Speed : 20-60spm
No. of stations : 9
Pitch : 173mm
Max Blank: 119mm
With die set, transfer slide, die & punch holders for all stations
New AC inverter, sequencer & cam positioner by Asahi-Seiki.
There is DIMAC feeder on this press but, this feeder is out of order. Feed does not work.
Regarding on shut height, shut height is shown different than nameplate. The reason is that
with this TP-150, a bolster plate is located between the bolster and the die bed (lower die),
and a top plate is there between bottom surface of ram and punch plate (upper die) respectively.
These plates are there so that shut height is different between nameplate & original shut height. Asahi-Seiki confirmed. This plate was installed by current user. It can all be removed to return to original shut height.
We have a drawing for reference. Inquire if you want an email copy.
Press is located in Japan and will be partially disassembled for exporting. Counter balances, motor, guarding and oil / coolant pan will be removed. Press will ship out at 11' tall x 10' wide x 8' deep.
5 sets of blank die holders
Knock-out plunger for 12 stations
5 sets of punch & die holders
5 sets of transfer slide are included with this press.
