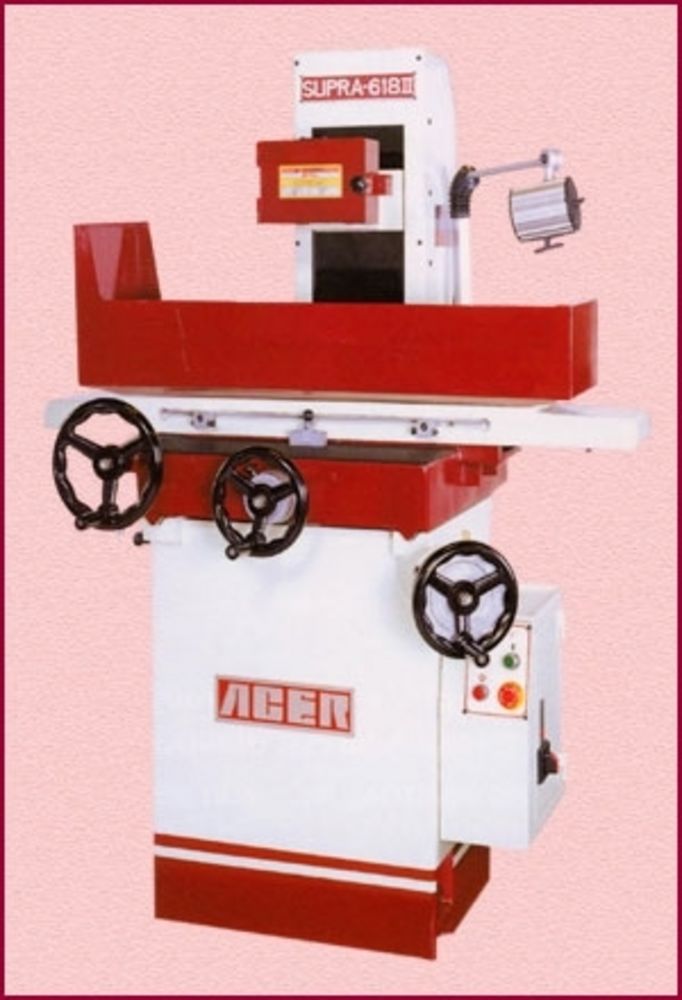

Acer Supra-618 II Surface Grinder

1550 1 large

$8,950.00

Product code: 11669

Acer Supra-618 II Surface Grinder

  • High, precise grinding performance

  • Auto lubrication system for preventing early wear,
  • Excellent rigidity and damping
  • Height of the column raised to 19.3" for stability

Model: Supra-618-II w/ Standard Accessories $ 8,750.00



Features:

  • Elevating Handwheel at Base of the Machine
  • Ball Rolling Table; Belt Drive
  • Auto Lubricator; High Tensile Meehanite Casting
  • Cast Iron Base: Double V “Turcite-B” Crossfeed Way
  • Indexible Table Handwheel; Waist-side Downfeed Mechanism
  • CE Standard Electric
  • Working Capacity: 6” x 18”



Optional Accessories:

  1. “ACER” 6” x 18” Permanent Magnetic Chuck……………………………….. $ 850.00
  2. “ACER” 6” x 18” Electro Fine Pole Chuck w/ Control………………..……... $ 1,600.00
  3. “WALKER” 6” x 18” Permanent Magnetic Chuck (Fine Pole)…….………… $ 2,800.00
  4. “WALKER” 6” x 18” Electro Fine Pole Chuck w/ Control………………….. $ 2,950.00
  5. Parallel Dresser (overhead manual)…………………………………………… $ 450.00
  6. Coolant System………………………………………………………………... $ 550.00
  7. Dust Suction & Coolant System…………………………………………......... $ 1,000.00
  8. Coolant System w/ Paper Filter……………………………………………….. $ 1,900.00
  9. Coolant System w/ Magnetic Separator & Paper Filter………………………. $ 2,500.00
  10. Extra Wheel Flange…………………………………………………………… $ 110.00
  11. “NEWALL” 2-Axis D.R.O. (8” x 18” Travel, 0.0001” Resolution)…………. $ 2,250.00
  12. “MAGNESCALE” 2-Axis D.R.O. (8” x 18” Travel, 0.00002” Resolution)…. $ 2,300.00
  13. Bracket & Installation Fee for D.R.O…………………………………….. Net $ 350.00
  14. Micro Downfeed System……………………………………………………… $ 850.00



Specifications:

Longitudinal Travel:

20”

Grinding Wheel:

8”(OD) x 1/2”(W) x 1-1/4”(ID)

Cross Feed Travel:

7-1/2”

Vertical Graduation:

0.0001” (Direct Dial)

Spindle Center to Table:

19-5/16”

Spindle Motor:

3 HP (V3)

Table Size:

6” x 18”

T-Slot:

1” x 3/8”

Spindle RPM:

3,450 RPM

Net Weight:

1,584 lbs.



Standard Accessories:

1 pc. Wheel Balancing Base 1 pc. Wheel Balancing Arbor

1 pc. Grinding Wheel 1 pc. Wheel Flange

1 pc. Diamond Dresser 1 pc. Halogen Work Light

1 set Toolbox w/ Tools 1 set Splash Guard



,, , ,, ,
,, , ,, ,
,,
,,

,,, The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only. ,,

,
