Surface, Recip.

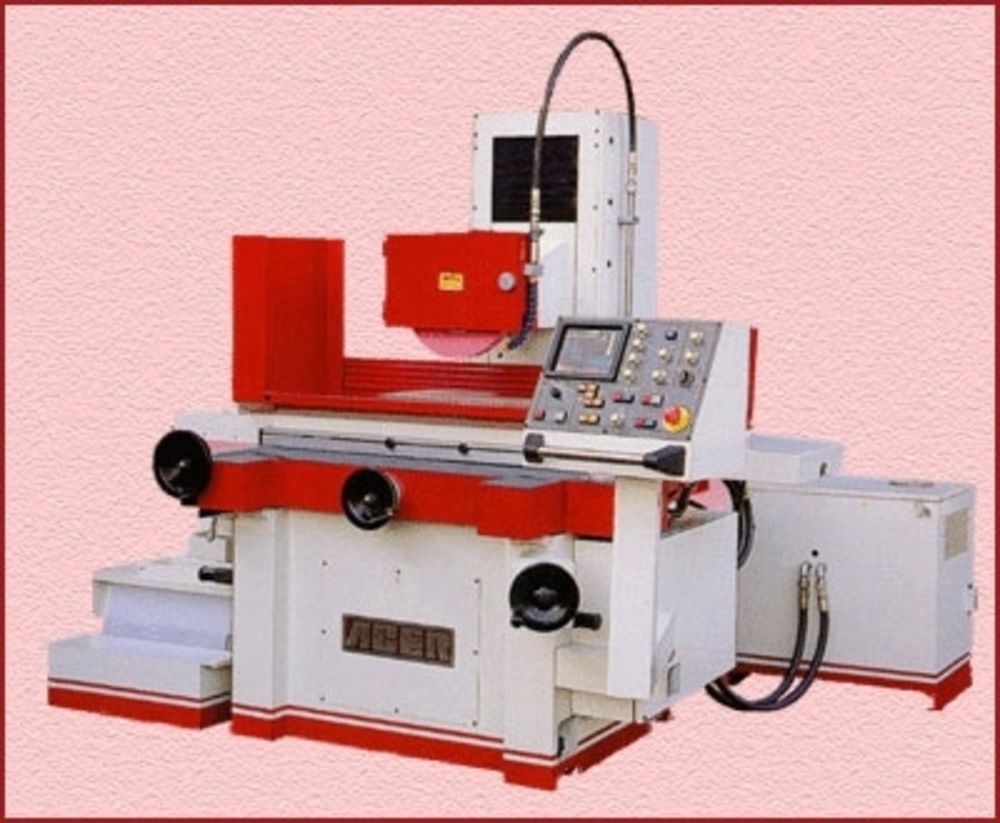

Acer Supra 1640 AHD High Precision Surface Grinder

1578 1 large

$38,300.00

Product code: 11698

ACER HIGH PRECISION SURFACE GRINDER





Model:         AGS-1640AHD w/ Standard Accessories                                          $         38,300.00



Features:     (3-Axis Auto Movement)

  • Precision “TURCITE-B” Ways
  • Hydraulic Table & Electronic Cross-feed
  • Auto Incremental Downfeed
  • Auto Lubricator, Rapid Elevation
  • Working Capacity: 16” x 40”



  • Price Includes:

            Coolant System with Paper Filter

            Manual Overhead Parallel Dresser

            16” x 40” ACER Electro-Magnetic Chuck

            Variable Chuck Control Master



Optional Accessories:

1.   “WALKER” 16” x 40” Electro Fine Pole Chuck w/ Control…………............  $         20,500.00

2.   Coolant System w/ Magnetic Separator & Paper Filter……………….............  $           2,000.00

3.   Extra Wheel Flange……………………………………………………………. $              410.00

4.   “NEWALL” 2-Axis D.RO. (16” x 24” Travel, 0.0001” Resolution).…………  $           3,100.00

5.   “MAGNESCALE” 2-Axis D.R.O. (16” x 24” Travel, 0.00002” Resolution).…                         $      P.O.R.

6.   Bracket & Installation Fee for D.R.O..…………………………………….Net $              450.00



Specifications:



Longitudinal Travel:

45.7"

Wheel Size:

14"(OD) x 2"(W) x 5"(ID)

Cross Feed Travel:

17.7"

Vertical Graduation:

0.00025"

Spindle Center to Table:

24.4"

Vertical Revolution:

0.05"

Table Size:

15.7" x 39.4"

T-Slot:

1" x 9/16"

Spindle RPM:

1,750 RPM

Table Speed:  Hydraulic

16 ~ 80 ft/min

Spindle Motor:

7.5 HP (V3)

Net Weight:

6,600 lbs.

Auto. Increment Downfeed:

Variable 10-Step (0.0001" ~ 0.001")







Standard Accessories:

                        1 pc. Wheel Balancing Base                             1 pc. Wheel Balancing Arbor

                        1 pc. Grinding Wheel                                       1 pc. Wheel Flange

                        1 pc. Manual Diamond Dresser                        1 pc. Halogen Work Light

                        1 set Toolbox w/ Tools                                    1 set Splash Guard
