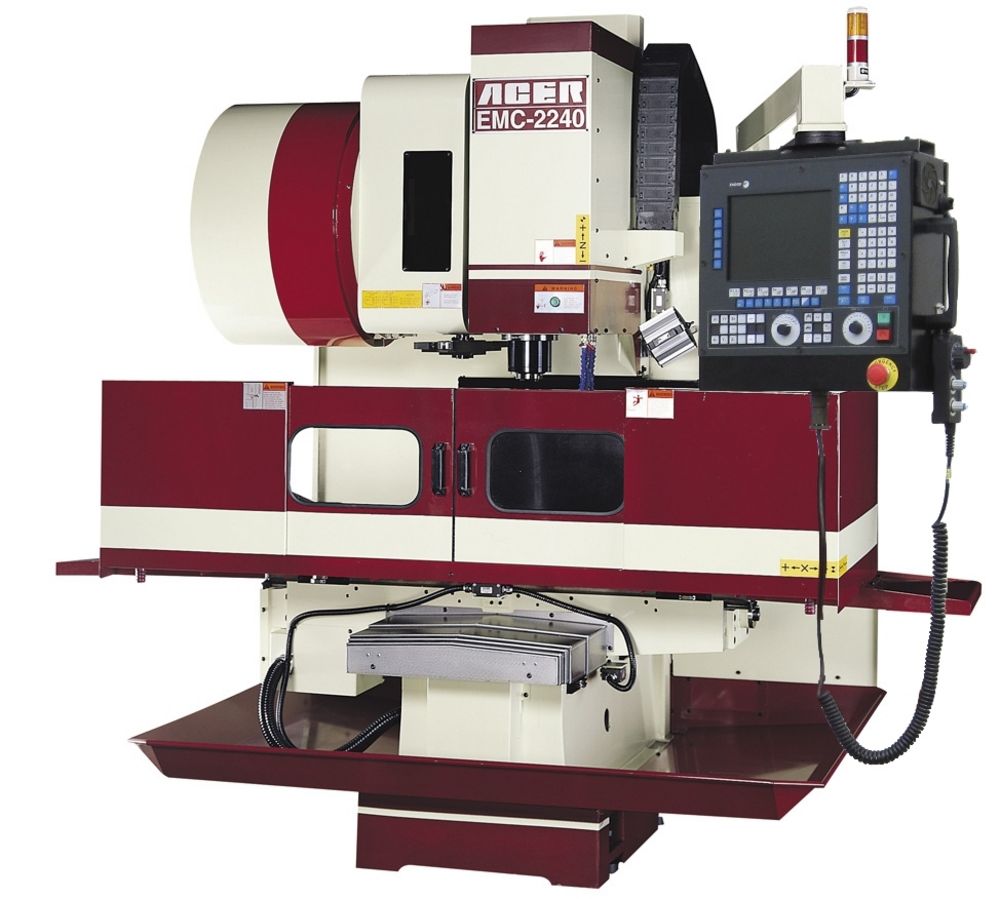

Acer EMC-2240A Machining Center with ATC Featuring FAGOR Control
FAGOR 8055i/A-MC Control
Machining center includes:
Tool clamp/ unclamp button.
Halogen light.
Four coolant nozzles splash the workpiece.
Retractable Z axis roller cover that blocks coolant and chips from entering the side ways.
Telescopic steel way cover.
Y, Z axes with square ways.
Hard stop limit switch which is also the secondary traveling limit.
Three axes hardened/ground slideway at Rockwell C 45 degrees.
Table splash guard have retractable doors.
Column side guard.
FC 30 Castings weigh only 8360 lbs.
2.5 HP German servo motor
joined with C5 ball screw with non-slip HTD timing belt and pulley.
All Acer EMC spindles contain 5 P4 precision angular contact ball bearings (NSK or FAG).
Automatic arm type tool changer. ,
20 tool changer is standard.
Optional 16 or 24 tool changer.
10 HP spindle motor made in Germany.
ACER electric cabinet is ready for more expansion.
90 degree swing overhead control arm.
This unit is a brand new OEM machine
Global Machine Brokers is an OEM licensed distributor of ACER machines.
The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.
The team at Global Machine Brokers will do the best we can to secure safe delivery of the machinery
| X - Axis | 40" |
| Y - Axis | 22" |
| Z - Axis | 20" |
| Power | 15 hp |
| RPM | 8,000 RPM |
| # ATC | 20 |
| Taper | CAT#40/BT#40 |
| Table-W | 14" |
| Table-L | 54" |
| # Axis | 3 |
Weight: 8500
