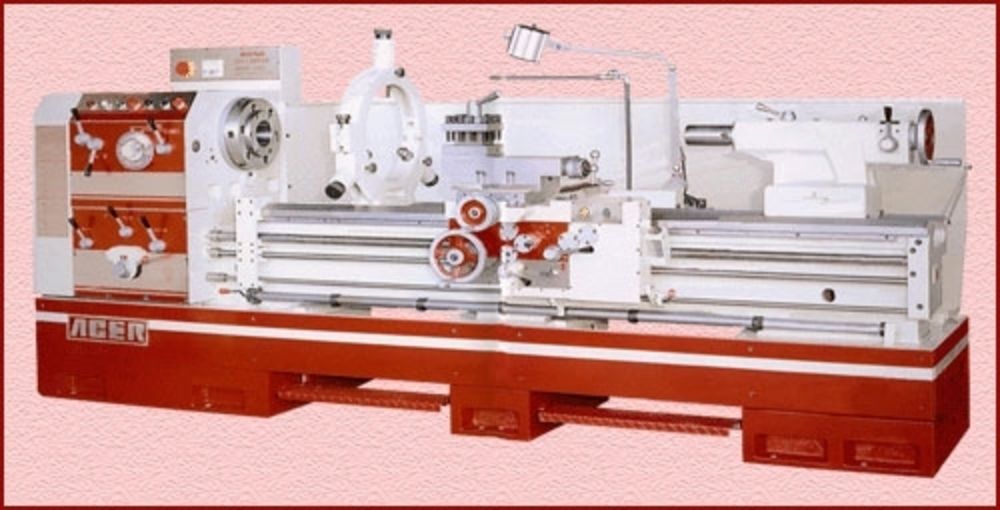

ACER DYNAMIC “29” SERIES HIGH SPEED PRECISION LATHE Model 29160G
Acer| $45,800.00 USD |
ACER DYNAMIC “29” SERIES HIGH SPEED PRECISION LATHE
DYNAMIC 2960G $ 36,900.00 DYNAMIC 29120G $ 42,300.00
DYNAMIC 2980G $ 38,900.00 DYNAMIC 29160G $ 45,800.00
Features:
4-1/8” Spindle Bore with D1-11 Camlock Spindle Nose
15 HP Spindle Speed Motor for 3 Phase 60HZ Wiring
12-Spindle Speed: 25 ~ 1,200 RPM
Hardened and Ground Meehanite Casting Bedway
Hardened and Ground Gears and Spindle
Headstock with Magnetic Clutch & Electric Brake
Rapid Crossfeed & Carriage Traverse
Optional Accessories:
1. 24” 4-Jaw Independent Chuck (D1-11) w/ Direct Mount………….. $ 4,520.00
(Made-In-Taiwan)
2. Follow Rest (0.4” ~ 3.4”)…………………………………………... $ 500.00
3. Face Plate ( 24” )………………………………………………........ $ 800.00
4. “ALORIS” Tool Post with 4-Holder Set (#5-BS)...………………... $ 2,000.00
5. “ALORIS” Tool Post with 6-Holder Set (#5-Set)...………………... $ 2,000.00
6. “DORIAN” Tool Post with 4-Holder Set (SD50DA-TS)…………... $ P.O.R.
7. Micrometer Stop……………………………………………………. $ 300.00
8. Six Position Carriage Stop………………………………………….. $ 400.00
9. Taper Turning Attachment………………………………………….. $ 1,850.00
10. Installation Fee for Taper Turning Attachment……………….. Net $ 500.00
11. “NEWALL” 2-Axis D.R.O. (16-1/2” x 60” Travel)……………..... $ 2,850.00
12. (16-1/2” x 80” Travel)………………. $ 3,400.00
13. (16-1/2” x 120” Travel)……………… $ 4,550.00
14. (16-1/2” x 160” Travel)……………… $ 5,550.00
15. “MAGNESCALE” 2-Axis D.R.O. (18” x 60”).……………………. $ P.O.R.
16. (18” x 80”)…..…………………. $ P.O.R.
17. Installation Fee for D.R.O (24” & 29” series)…………………Net $ 500.00
Standard Accessories:
20” D1-11 Four Jaw Chuck 20” Face Plate
One Steady Rest (Bearing Type) Follow Rest
(3.1”-9.5” Long Tip) Longitudinal Carriage Stop
(7.8”-14.5” Short Tip) 16” Drive Plate
Followable Splash Guard (34” wide) Built-In Coolant System
(60”, 80” w/ Full Length Splash Guard) 4-Way Tool Post
Halogen Work Light Chuck Guard w/ Emergency Stop
12” Adaptor Plate Tool Box w/ Tools
| Swing | 29" |
| Centers | 160" |
| Spindle Bore | 4" |
| Power | 15 hp |
| RPM | 1,200 RPM |
| Swing Over Cross Slide | 20.5" |
Weight: 12000
Height: 74
Length: 226
Width: 50
