Acer Dynamic 1960S Series Large Bore Engine Lathe D1-8 Nose 20-20k Rpm 7.5 Hp (#15746)

Price: $19,900.00

More information

You will receive an invoice via email or Ebay for the full amount owed, including shipping. Please donot pay until you have received the invoice. Items not paid within 10 days from the end of an auction will be relisted. Payments by check will be held up to 4 days until the check clears.

We can ship by LTL, partial or full, van or flatbed, double drop, or export container.

Freight costs are to be quoted at the time of sale.

All freight costs are to be paid by the buyer prior to pickup.

Please contact a sales representative for a shipping quote.

We ship within 5 business days of cleared payment. Freight shipments may take longer due to palletizing and scheduling. Items lessthan 100 lbs. ship via UPS ground. Freight may be booked with any carrier, but usually goes out on the best available.

Extra shipping charges:
Lift gate truck- Add $128
Residential Delivery- Add $80
If a rigger, a lift gate truck, or a residential delivery is necessary, please notify us prior to quoting shipping.

If buyer chooses to use their own freight, shipping account, and or carrier, they will be responsible for all scheduling, paperwork, claims, and any damages incurred in transit.

Local pickup is always welcome. No handling fees apply on local pickup. Any item not picked up within 30 days from the end of anauction will be charged 10% of item(s) cost per month for storage.

You are bidding on a used item. Please be sure to ask any and all questions prior to bidding. SOLD AS IS/WHERE IS. We will do our best to answer specific questions but please be aware that the equipment may no longer be located within the original facility and historical information and photos may be limited.

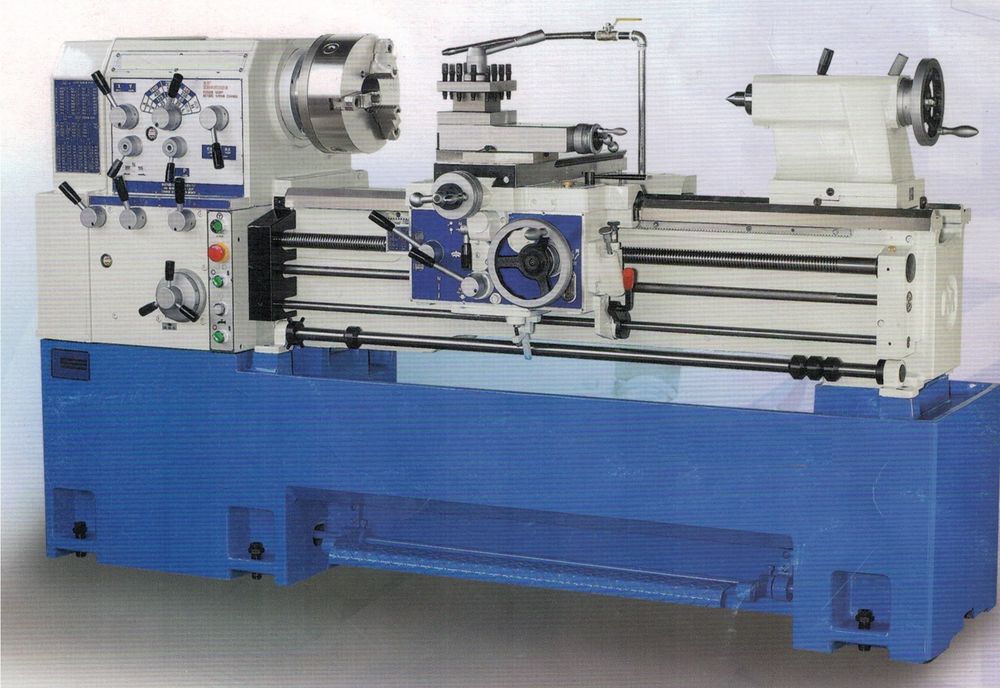

Acer Dynamic 1960S Series Large Bore Engine Lathe D1-8 Nose 20-20k Rpm 7.5 Hp

Make: Acer
Model: 1960S
Swing: 18.5'
Swing Over Gap: 27.1/8"
Swing Over Cross Slide: 11"
Distance Between Centers: 60"
Bed Width: 11-4/5"
Spindle Bore: 3”
Spindle Nose:  D1-8
Taper Of Spindle Bore: MT#7
10” D1-8 3-Jaw Chuck
Spindle Speed: 20 ~ 2,000 RPM (12 Spindle Speed)
7.5 HP Spindle Motor
Compound Rest Travel: 4-7/8"
Cross Slide Travel: 9-2/3"
Steady Rest – Bronze Tip (0.39” ~ 6.29”)
Tail Spindle Travel: 5-7/8"
Tail Spindle Diameter: 2-1/4"
Inch Threads Range: 4~56 Tpi
Metric Threads Range: P 0.5~P7
Long Feed Range: 0.05~0.82 MM
Cross Feed Range: 0.02~0.4 MM
Leadscrew Diameter: 35 MM
Leadscrew Pitch: 4 Tpi
Auto. Feed & Threading are interlocked to prevent simultaneous functions
Thermal Treated Meehanite casting bed; Bed Hardness reaches HS70
 Heat Treated and Precision Ground Alloy Gears
 Universal Gearbox for both Inch/Metric Thread & Conversion Chart
 Automatic Longitudinal Multiple Feed Stop
10” D1-8 Three Jaw Chuck
Built-In Coolant System
Steady Rest - Bronze Tip (0.39” ~ 6.29”)
Followable Splash Guard
Longitudinal Carriage Stop
4-Way Tool Post
Halogen Work Light
Tool Box w/ Tools

Optional Accessories Include:

12” 4-Jaw Independent Chuck (D1-8): $ 900.00
Follow Rest (Bronze Tip): 0.59” ~ 2.76” Range: $ 450.00
16” Face Plate: $ 400.00
“ALORIS” Tool Post & 4-Holder Set (#3-BS): $ 1,250.00
“ALORIS” Tool Post & 6-Holder Set (#3 Set): $ 1,600.00
“DORIAN” Tool Post & 4-Holder Set (SD35CXA-TS): $ P.O.R.
Micrometer Stop: $ 275.00
Four Position Carriage Stop: $ 375.00
5C Collet Closer (Lever-Type): $ 1,600.00
5C Collet Set (1/16” to 1-1/16” x 16ths; 17pcs/set): $ 600.00
Taper Turning Attachment: $ 1,700.00
NEWALL  2-Axis D.R.O. (10” x 30”) $ 2,750
MAGNASCALE 2-Axis D.R.O. (10” x 30”) $ 2,950
Upgrade To 10Hp Spindle Motor: $350
