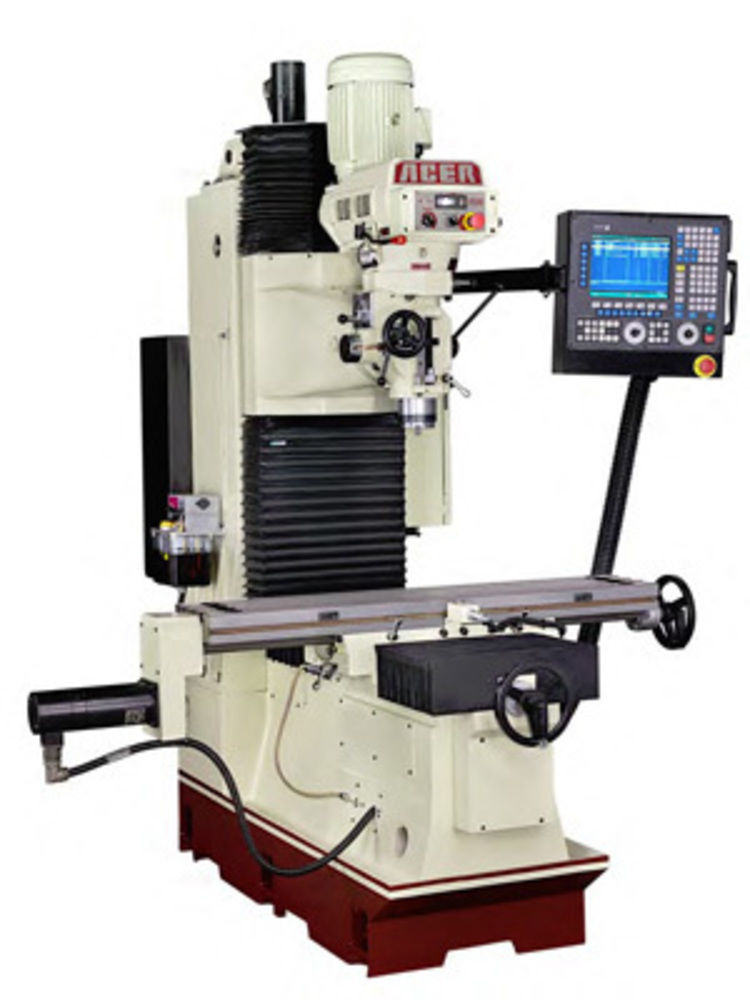

ACER BED-MILL 1054 BEDTYPE MILLING MACHINE W/ FAGOR 8055i / A-MC 3 or 4 AXIS CNC CONTROL

$34,350.00

Product code: 13256

ACER BED-MILL 1054

THE ACER BEDTYPE MILLING MACHINE

W/ “FAGOR 8055i / A-MC”  3 or 4 AXIS CNC CONTROL

HIGH EFFICIENCY * PRODUCTIVITY * USER-FRIENDLY

THE PACKAGE INCLUDES:

ACER BED-MILL 1054
“FAGOR” 8055i / A-MC 3 or 4-Axis CNC Control
Auto Lube System
C5 Ball Screws and Double-End Thrust Bearing Set

ULTRA HIGH QUALITY ACER BEDTYPE MILLING MACHINE:

  • 5 HP Inverter Spindle Motor
  • Infinite 0 ~ 4,500 RPM Spindle Speed
  • “TOSHIBA” Vector Type Frequency Inverter
  • HRC 52° Hardened and Ground Table
  • Turcite-B Coated Slideway and Gibs
  • Precision Spindle w/ ABEC-7 Bearings
  • Meehanite Casting
  • Automotive Paint
  • Rugged 10” x 54” Table
  • 1-1/4” Diameter Ball Screws with Casted Mounting Brackets
  • Hardened & Ground X, Y, & Z, Table Top and Bottom to HRC 52°
  • X, Y, Z Travel:  31.5” x 20” x 20.87”
  •  CAT #40 Taper Spindle
  • Class 7 Precision Spindle Bearings
  • Precision 4” Diameter Hard Chromed Quill at HRC 62°
  • Turcite-B Lining Saddle Ways to Reduce Slide-Way Wear
  • Max. Load on Table is 1,320 lbs.
  • Machine Weight:  4,758 lbs.

Control Software Features:

  • Interactive ICON based conversational programming system.
  • One screen—One Operation, Fill in the blanks & press cycle to start.
  • No Limit to the number of programs in memory!
  • Built-In Mini CAD/CAM system.
  • 11” Color TFT LCD screen.
  • Numerous Canned Cycles in Conversational and G-code.
  • (3) 31 in/lb. DC Brush Servo Motors & Drives.
  • Flash memory (1MB flash RAM / 512MB CF);  2GB CF optional ($1,500)
  • USB Memory port standard.  Ethernet optional. ($700)
  • WinDNC (DXF converter) and Engraving. Optional ($250)
  • Smart Z-axis quill for CNC and manual mode with scale-fed DRO feedback. Optional ($1,000)
  • Full CNC package includes Ball Screws and Motor Brackets for all axes.
  • “FAGOR” 8055i / A-MC CNC’s give you 4th-axis capability out of the box!!

CNC OPTIONAL ACCESSORIES:

1.      Programmable Spindle RPM …………………....………………………….  $                   500.00

2.      Manual Pulse Generator…………………………………………………….  $                   850.00

3.      Remote Start / Stop Switch…………………………………………………. $                   350.00

4.      Home Position Switch for Home & Fixture Offset………………………….                   $  200.00

5.      Program Training (Accommodation & Transportation not included)….  Net $    800/Day/Labor



MACHINE OPTIONAL ACCESSORIES:

1.      Maxi-Torque Automatic Air Power Draw Bar & Safety Ring……………... $                   800.00

2.      Installation Fee on Power Draw Bar & Safety Ring………………….. Net   $                   100.00

3.      12” Rotary Table (vertical & horizontal)……………………………………  $                   800.00

4.      T-Slot Cover………………………………………………………………… $                   100.00

5.      Chip Pan………………………..……..…………………………………….  $                   450.00

6.      Rear Splash Guard Set (Left & Right)……………………………………… $                   400.00

7.      Table Guard…………………………………………………………………  $                   450.00

8.Clamping Kits (52 pieces)…………………………………………………..  $                   150.00

9.6” Milling Vise……………………………………………………………… $                  450.00

10.Coolant System……………………………...……………………………… $                   500.00

11.Installation Fee on Coolant System integrated with CNC Control……         Net           $                                                                                                           200.00

12.8” Rotary Table w. Integrated Drive & Motor (special order)……………...  $              11,000.00

13.Tailstock for Rotary Table (special order)…………………………………..  $                   950.00

14.Upgrade Frequency Inverter (3 Phase, 380V - 520V)…………………         Net                        $                    450.00





Price:         Supra CNC-Bedtype w/ 3-Axis FAGOR 8055 Control



Bed-mill 1054 w/ 8055 3-Axis CNC Control          (10” x 54” Table Size)              $              30,350.00



Price:         Supra CNC-Bedtype w/ 4-Axis FAGOR 8055 Control



Bed-mill 1054 w/ 8055 4-Axis CNC Control          (10” x 54” Table Size)              $              34,350.00
