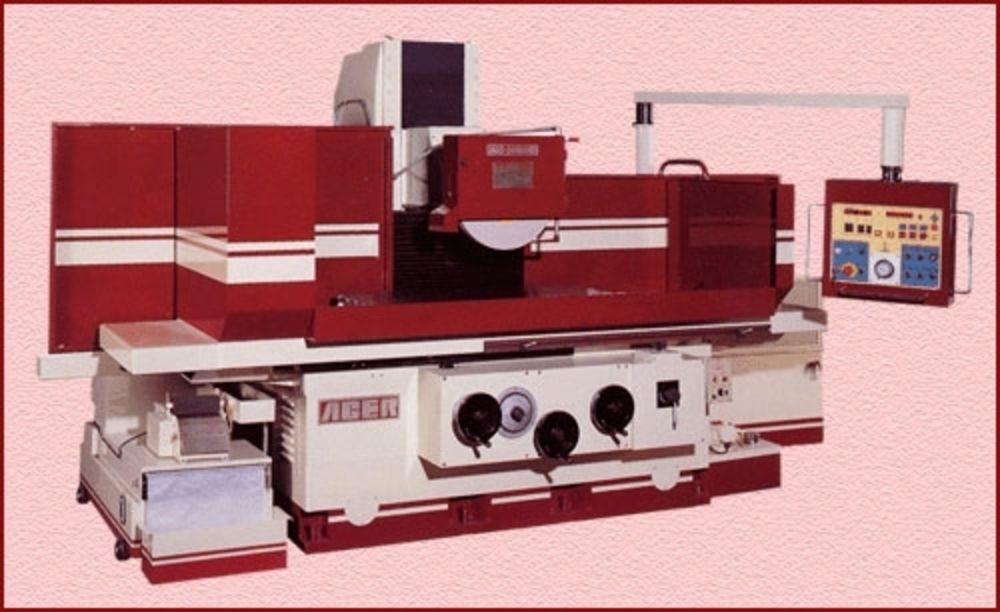

Acer AGS-2480AHD High Precision Surface Grinder With Standard Accessories (#11662)

Price: $133,800.00
More informationACER HIGH PRECISION SURFACE GRINDER
Model:
Features: (3-Axis Auto Movement)
- Precision “Turcite-B” Ways; Column Movement
- Hydraulic Table & Electronic Crossfeed
- Auto Incremental Downfeed
- Auto Lubricator, Rapid Elevation
- Maximum Working Capacity: 24” x 80”
- w/ NC Downfeed
Optional Accessories:
- Extra Wheel Flange…………………………………………………………….. $ 700.00
- Electric Overhead Dresser (Factory Installed Only)(2-Axis)………………….. $ 4,800.00
- Hydraulic Overhead Dresser (Factory Installed Only)(Single Axis)……........... $ 2,000.00
- Upgrade to 15HP Japan Fuji Spindle Motor……………………………........... $ 4,500.00
- “NEWALL” 2-Axis D.R.O. (28” x 34” Travel, 0.0001” resolution)………….. $ 3,400.00
- “MAGNESCALE” 2-Axis D.R.O. (30” x 36” Travel, 0.00002” resolution)..… $ P.O.R.
- Bracket & Installation Fee for D.R.O……………………………………. Net $ 550.00
Specifications:
Longitudinal Travel: |
83” |
Grinding Wheel: |
20” x 2” x 5” |
Cross Feed Travel: |
24-1/2” |
Vertical Graduation: |
0.0005” |
Spindle Center to Table: |
33” |
Vertical Revolution: |
0.05” |
Table Size: |
24” x 80” |
T-Slot: |
1” x 9/16” |
Wheel Speed: |
1,150 |
Table Speed: |
16 - 80 ft./min. |
Spindle Motor: |
15 HP (V3) |
Net Weight: |
18,700 lbs. |
Standard Accessories:
1 pc. Wheel Balancing Base 1 pc. Wheel Balancing Arbor
1 pc. Grinding Wheel 1 pc. Wheel Flange
1 pc. Manual Diamond Dresser 1 pc. Halogen Work Light
1 set Toolbox w/ Tools 1 set Splash Guard
**Photos in grey are of an actual machine that is primered and ready for Acer Burgundy and Beige paint
