Acer AGS-1632AHD High Precision Surface Grinder With Standard Accessories, NEW

$36,700.00

Product code: 11650

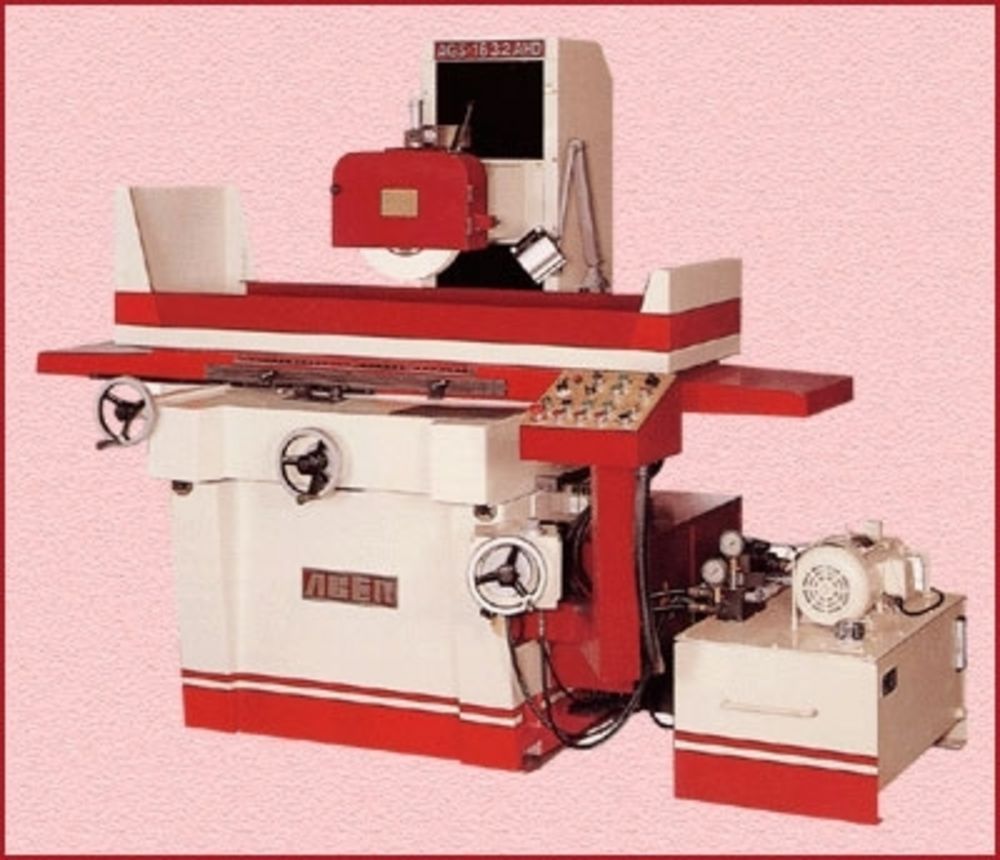

ACER HIGH PRECISION SURFACE GRINDER





Model:         AGS-1632AHD w/ Standard Accessories                                            $        36,700.00



Features:     (3-Axis Auto Movement)

  • Precision “Turcite-B” Ways; Saddle Movement
  • Hydraulic Table & Electronic Crossfeed
  • Auto Incremental Downfeed
  • Auto Lubricator, Rapid Elevation
  • Maximum Working Capacity: 16” x 32”



  • Price Includes:

            Coolant System w/ Magnetic Separator & Paper Filter

            Manual Overhead Parallel Dresser

            16” x 32” ACER Electro-Magnetic Chuck

            Variable Chuck Control Master



Optional Accessories:

  1. “WALKER” 16” x 32” Electric LBP Chuck w/ Control (Fine Pole)…………..  $        12,950.00
  2. Extra Wheel Flange...…………………………………………………………..   $             410.00
  3. “NEWALL” 2-Axis D.R.O. (20” x 30” Travel, 0.0001” Resolution)……........   $          3,200.00
  4. “MAGNESCALE” 2-Axis D.R.O. (20” x 30” Travel, 0.00002” Resolution)…   $          3,300.00
  5. Bracket & Installation Fee for D.R.O…………………………………......Net    $             450.00



Specifications:

Longitudinal Travel:

33-1/16”

Grinding Wheel:

14” (OD) x 2”(W) x 5”(ID)

Cross Feed Travel:

18”

Vertical Graduation:

0.00025”

Spindle Center to Table:

25”

Vertical Revolution:

0.05”

Table Size:

16” x 32”

T-Slot:

1” x 9/16”

Spindle RPM:

1,750 RPM

Table Speed: Hydraulic

16 - 80 ft./min.

Spindle Motor:

7.5 HP (V3)

Net Weight:

6,160 lbs.

Auto. Increment Downfeed:

Variable 10 Step (0.0001” - 0.001”)



Standard Accessories:

                    1 pc. Wheel Balancing Base                              1 pc. Wheel Balancing Arbor

                    1 pc. Grinding Wheel                                         1 pc. Wheel Flange

                    1 pc. Manual Diamond Dresser                         1 pc. Halogen Work Light

                    1 set Toolbox w/ Tools                                      1 set Splash Guard
