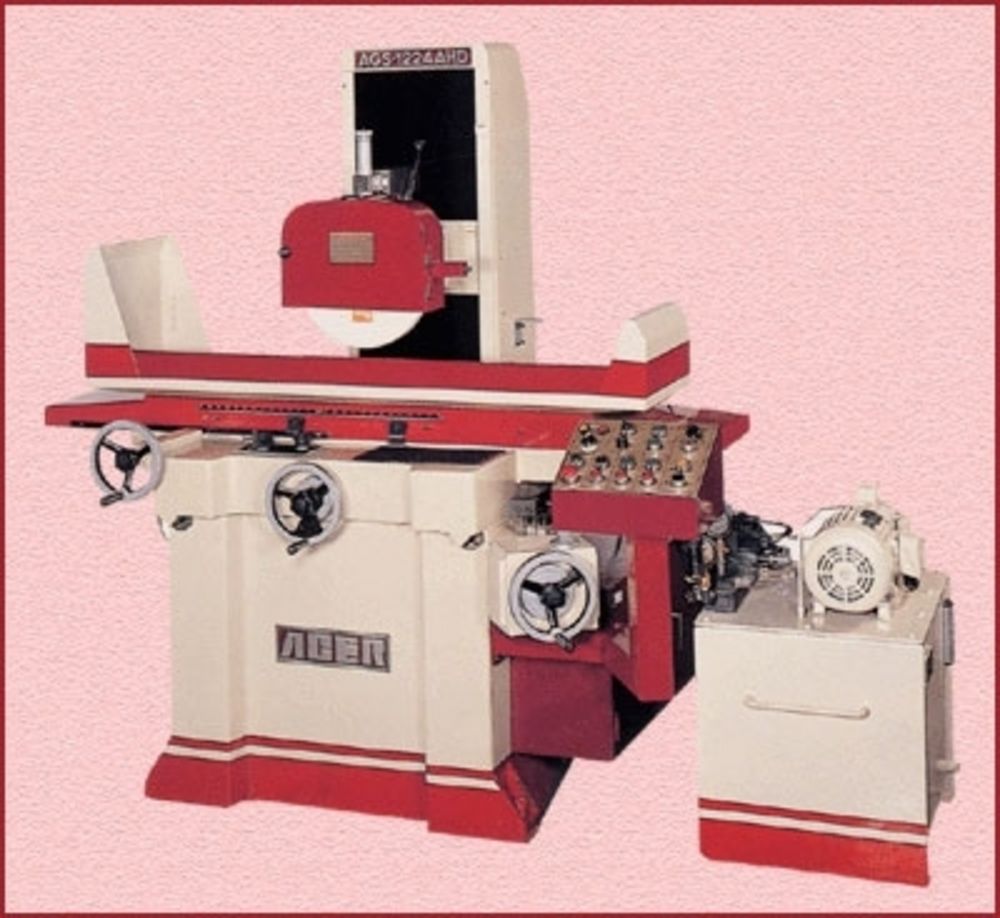

Acer AGS-1230AHD High Precision Surface Grinder w/ Standard Accessories (#11648)

Price: $26,500.00
More informationACER HIGH PRECISION SURFACE GRINDER
Model: AGS-1230AHD w/ Standard Accessories $ 26,500.00
Features: (3-Axis Auto Movement)
- Precision “TURCITE-B” Ways
- Hydraulic Table & Electronic Cross-feed
- Auto Incremental Downfeed
- Auto Lubricator, Rapid Elevation
- Working Capacity: 12” x 30”
- Price Includes:
Coolant System with Paper Filter
Manual Overhead Parallel Dresser
12” x 28” ACER Electro-Magnetic Chuck
Variable Chuck Control Master
Optional Accessories:
- “WALKER” 12” x 24” Electro Fine Pole Chuck w/ Control………….......... $ 6,000.00
- Coolant System w/ Magnetic Separator & Paper Filter(1010+M2)……......... $ 2,000.00
- Extra Wheel Flange…………………………………………………………… $ 250.00
- “NEWALL” 2-Axis D.RO. (16” x 24” Travel, 0.0001” Resolution).………. $ 3,000.00
- “MAGNESCALE” 2-Axis D.R.O. (16” x 24” Travel, 0.00002” Resolution).. $ P.O.R.
- Bracket & Installation Fee for D.R.O..…………………………………. Net $ 450.00
Specifications:
Longitudinal Travel: |
33.1" |
Wheel Size: |
14"(OD) x 1-1/4"(W) x 5" (ID) |
|
Cross Feed Travel: |
13.1" |
Vertical Graduation: |
0.0005" |
|
Spindle Center to Table: |
23-1/2" |
Vertical Revolution: |
0.1" |
|
Table Size: |
12" x 30" |
T-Slot: |
1" x 9/16" |
|
Wheel Speed: |
1,750 RPM |
Table Speed: |
16 ~ 80 ft/min |
|
Spindle Motor: |
5 HP (V3) |
Net Weight: |
4,290 lbs. |
|
Auto. Increment Downfeed: |
Variable 10-Step (0.0001" ~ 0.001") |
|
|
Standard Accessories:
1 pc. Wheel Balancing Base 1 pc. Wheel Balancing Arbor
1 pc. Grinding Wheel 1 pc. Wheel Flange
1 pc. Manual Diamond Dresser 1 pc. Halogen Work Light
1 set Toolbox w/ Tools 1 set Splash Guard
Shipping not included
