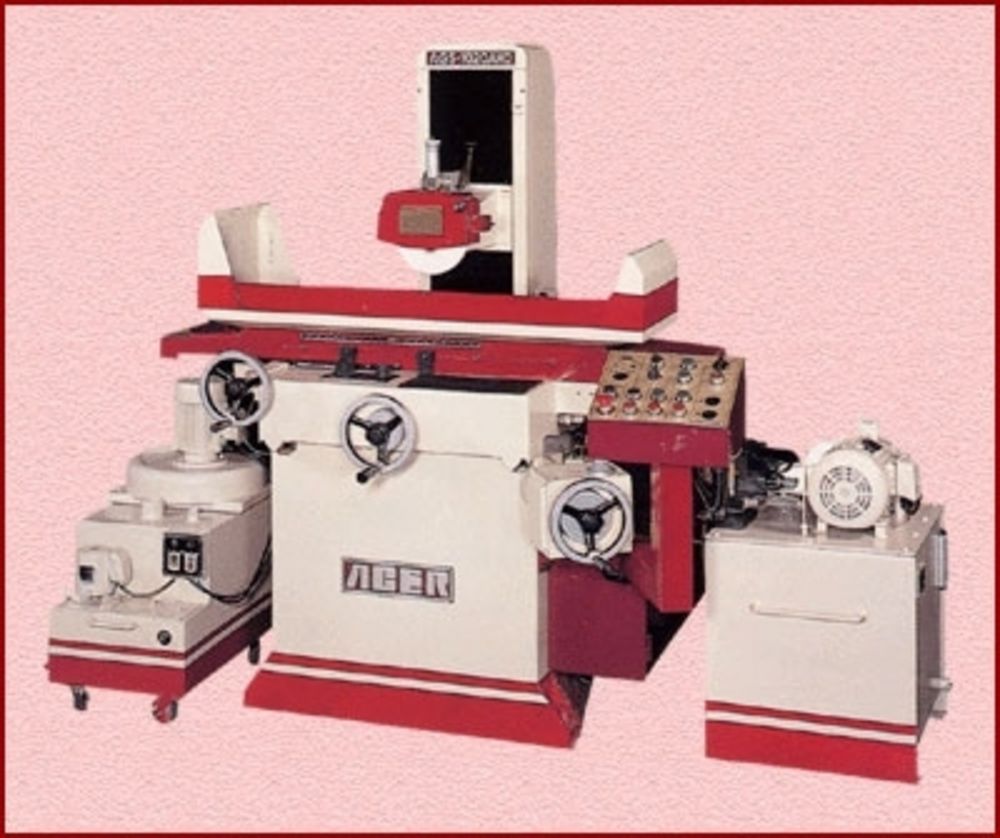

Acer AGS-1020AHD Precision Surface Grinder, NEW, with standard accessories (#11646)

Price: $19,800.00
More informationACER HIGH PRECISION SURFACE GRINDER
Model:
Features: (3-Axis Auto Movement)
- Precision “Turcite-B” Ways
- Hydraulic Table & Electronic Cross Feed
- Auto Incremental Downfeed; Auto Lubrication
- Enhanced Feature: Rapid Elevation
- Working Capacity: 8” x 18”
Optional Accessories:
1. “ACER” 8” x 18” Permanent Magnetic Chuck (Regular Pole)..…………......... $ 1,200.00
2. “ACER” 8” x 18” Electro Chuck with Control (Regular Pole)………………… $ 1,850.00
3. “WALKER” 8” x 18” Permanent Magnetic Chuck (Fine Pole)……….............. $ 3,500.00
4. “WALKER” 8” x 18” Electro Chuck w/ Chuck Control (Fine Pole)….……….. $ 3,300.00
5. Manual Parallel Dresser (overhead)…..………………………………..……….. $ 550.00
6. Coolant System………………………………………………………………….. $ 550.00
7. Dust Suction & Coolant System (1010)………………………………….……… $ 1,000.00
8. Coolant System (1010)w/ Paper Filter………………………………………….. $ 1,500.00
9. Coolant System (1010)w/ Magnetic Separator & Paper Filter……………......... $ 2,000.00
10. Extra Wheel Flange……………………………………………………………… $ 110.00
11. “NEWALL” 2-Axis D.R.O. (12” x 20” Travel, 0.0001” Resolution)..….……… $ 2,700.00
12. “MAGNESCALE” 2-Axis D.R.O. (12” x 20” Travel, 0.00002” Resolution)….. $ 2,800.00
13. Bracket & Installation Fee for D.R.O……………………………………… Net $ 450.00
Specifications:
Longitudinal Travel: |
20-1/2” |
Grinding Wheel: |
8”(OD) x 1/2”(W) x 1- 1/4” (ID) |
Cross Feed Travel: |
11” |
Vertical Graduation: |
0.0005” |
|
19-3/4” |
Vertical Revolution: |
0.1” |
Table Size: |
9” x 20” |
Spindle Motor: |
2 HP (V3) |
Wheel Speed: |
3,500 |
T-Slot: |
1” x 9/16” |
Table Speed: Hydraulic |
16 ~ 80 fpm |
Net Weight: |
2,970 lbs. |
Standard Accessories:
1 pc. Wheel Balancing Base 1 pc. Wheel Balancing Arbor
1 pc. Grinding Wheel 1 pc. Wheel Flange
1 pc. Table Wheel Dresser 1 pc. Halogen Work Light
1 set Toolbox w/ Tools 1 set Splash Guard
- Special Package Price: ………………………………………………… $ 22,200.00
w/ 8” x 18” ACER Electro-Magnetic Chuck (Regular Pole) & Chuck Control
Dust Suction & Coolant System
Parallel Dresser (Overhead Manual)
Shipping not included
