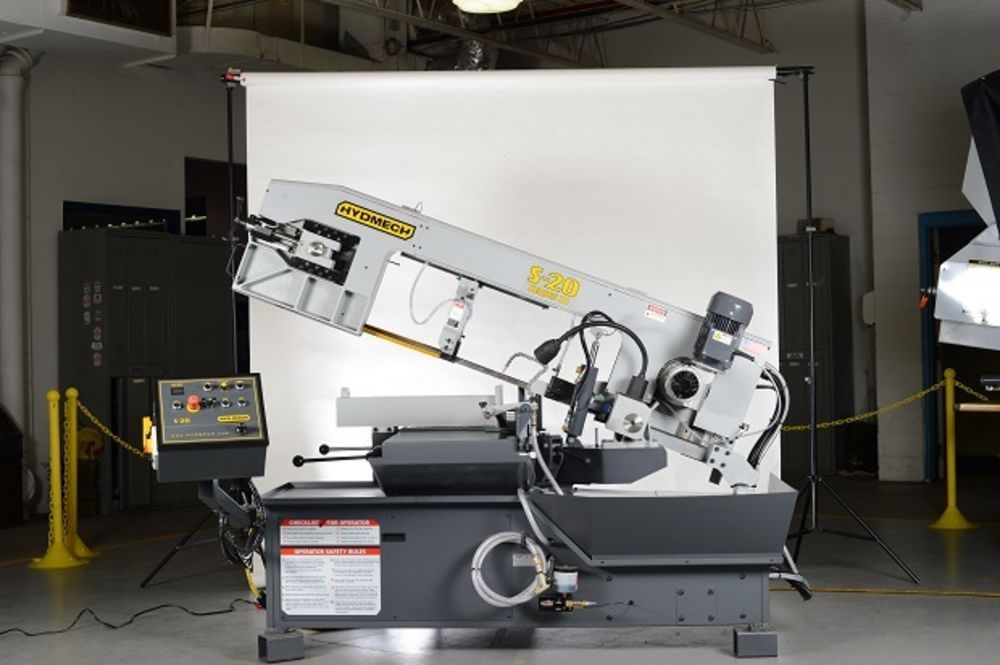

HydMech S-20 13"H X 18"W Rectangular Capacity 1" Blade 45-330 Sfm 3Hp Band Saw

$10,800.00

Product code: 15243

HydMech S-20 13"H X 18"W Rectangular Capacity 1" Blade 45-330 Sfm 3Hp Band Saw

  • Make: HydMech
  • Model: S-20
  • Table Height: 31"
  • Rectangular Capacity At 90°: 13” H x 18” W
  • Rectangular Capacity At 45°: 13” X 10 3/4”
  • Rectangular Capacity At 30°: 13” X 7 3/4”
  • Round Capacity At 90°: 13"
  • Round Capacity At 45°: 12”
  • Round Capacity At 30°: 8 1/2”
  • Blade Dimensions: 1” x 14′ 10”
  • Blade Drive: 3 HP VFD
  • Blade Speed: 45-330 SFM
  • Coolant Tank Capacity: 6 US Gal
  • Machine Volts: 208, 240, 480, Or 575 v
  • Max Workload: 5,000 Lbs
  • Machine Weight: 2,200 Lbs
  • Machine Dimensions: 92”W 75”L 52”H

Standard Features:

  • Easy Swing, Heavy Duty Cast Iron Saw Head
  • 3 HP True Direct Blade Drive – No Belts/Pulleys
  • 36” Material In-Feed Roller Table And 19” Out Feed Table
  • Heavy Duty Sliding Vise Jaw
  • Mechanical Band Tensioning With Digital Readout
  • Cast Iron Band Wheels
  • Swing Away Control
  • Replaceable Blade Brush
  • Robust Steel Base
  • Easy To Read Angle Scale With Angle Locking Mechanism
  • Cast Iron Guide Arms. Idler Side Guide Arm Is Adjustable And Supported By Linear Rail.
  • Gravity Head Feed
  • Replaceable Carbide Guide Inserts
  • Safety Door Interlocks
  • Flood Coolant With Wash Down Hose
  • Laser Light
  • Work Light

Available Options: (At Additional Cost)

  • Mist Lubrication
  • Work Stop
  • Single Phase – 220 V
  • Idler Conveyors

The S-20 Manual Band Saw Features A Swing Head Design And Provides Exceptional Miter Cutting Capability For Light To Medium Duty Applications.

Featuring A 13″H x 18″W Capacity At 90°, 3 HP Motor, And 1″ Blade, The S-20 Is A Versatile Machine Ideal For Use In Tight Working Spaces.
