Giant Finishing GB-4DHW Vibratory Bowls/Finishing System

$25,500.00

Product code: 15497

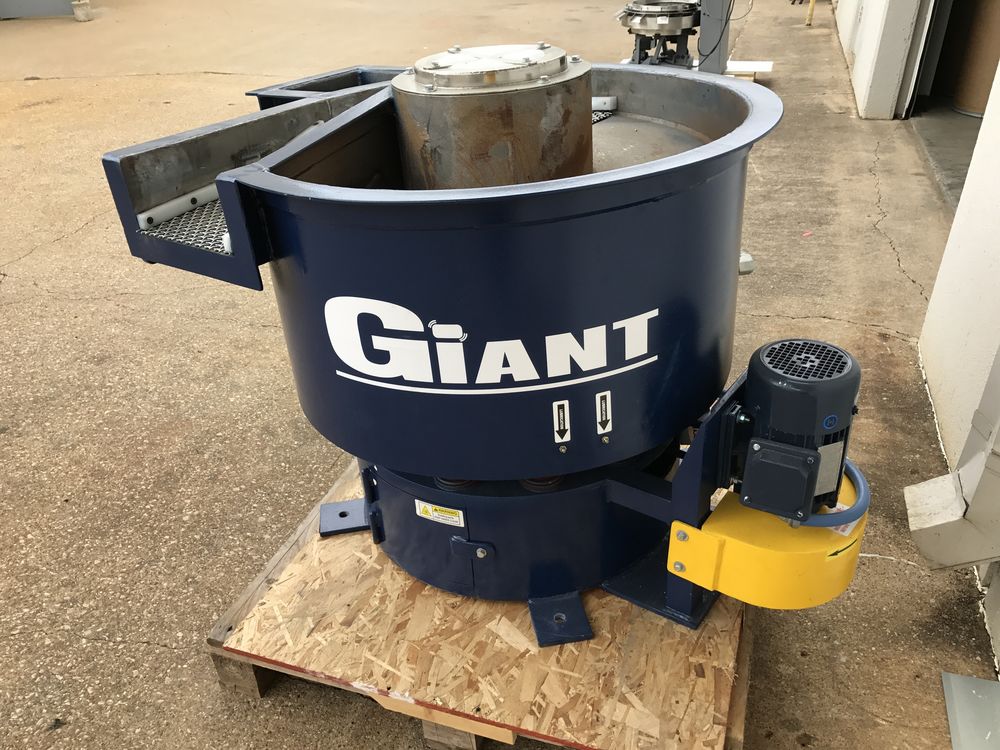

Giant Finishing GB-4DHW Vibratory Bowls



Spiral Bowl with Internal Separation Vibratory Deburring and Finishing Machine

Giant Finishing 2 bowl cleaning/drying system

New 2017 never used with full manufacturer warranty

Porcelain aggregate cleaning solution corn cobb included

Must sell need the floor space, used price. New price was $34,000

Complete Brass Finishing System – Can be used for cleaning up spent brass bullet cases



SPECS AND KEY FEATURES:

  •
  • Processing Capacity - 3.0 Cu Ft.
  • Maximum Load Capacity - 600 lbs.
  • Bowl Diameter - 39"
  • Channel Width (After Lining) - 9"
  • Channel Width (Average) - 10"
  • Overall Height - 42"
  • Overall Depth - 46"
  • Unloaded Height - 31"
  • Load Height - 39"
    • Drive Unit:
      • Horse Power - 1 1/2 Hp
      • NEMA Class - T.E.F.C.
      • Voltage - 230/460, 60hz
      • High Efficiency Motor
      • Floor Space - 12 Sq. Ft.
      • Polyurethane Lining Thickness - 3/4"
      • Polyurethane Lining Hardness - Durometer 90+
      • Shipping Weight - 1,160 lbs.
      • Paint - Giant Finishing Blue
      • Parts Unloading - Parts Discharge Ramp, with locking lever
      • Compound Connections - Inlet Piping
      • Drain Plug - Removable Cast Urethane Plug
      • Bowl & Base Construction - Heavy duty, all welded steel construction, reinforced with gusset plates. The bowl is stress relieved, then shot-peened for maximum durability & lined with a 90+ Durometer Urethane.
      • Precision Drive System - Heavy duty spherical roller bearings, mounted to the vertical drive shaft.
      • Amplitude Adjustments - Drop on weight segments
      • Amplitude Adjustments, for Fast Finishing Action - Adjustable Flywheel Angle
      • Tub Suspension - Tuned Coil Spring Suspension
      • Screen - Removable Cast Urethane Screen
      • Drive Unit:
        • Electronics:
          • Variable Speed AC Inverter Drive
          • Digital Tachometer Precision Feedback Loop
          • Digital Read-Out of Machine RPM
          • Push Button Controls, Adjust Vibration Frequency Up & Down
        • Motor Voltage - 230/460, 3 Phase, 60hz (Customer supplied disconnect)
      • Control Panel:
        • Rating - Nema 12
        • Process Timer - 0-6 Hour
        • Receptacle - 110 Vac
        • Standard Voltage - 230/460, 3 Phase, 60 Hz
      • Automatic Premixing Compound System: (Keep your Parts & Media clean, during processing, by continiously mixing Compound & Water, into vibratory mass)
        • Pump
        • Mixing Head
        • Valves
        • Spray Headers
        • Drain Hoses
        • 15 Gallon Drum
      • Wrap Around Settling Tank: (Saves floor space, by hugging base of machine)
        • Capacity - 30 Gallons
        • Shape - Kidney
      • Parts Transfer Configuration: (For interconnection 2 machines)
      • Load of Porcelain Media
      • Drum of Burnishing Compound





.

This item is no longer available.
